Khoom siv

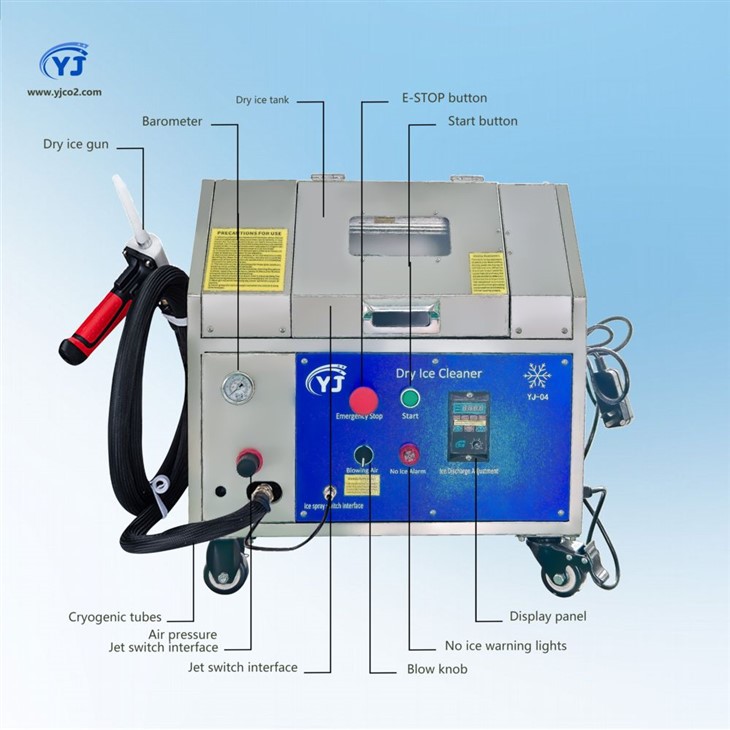

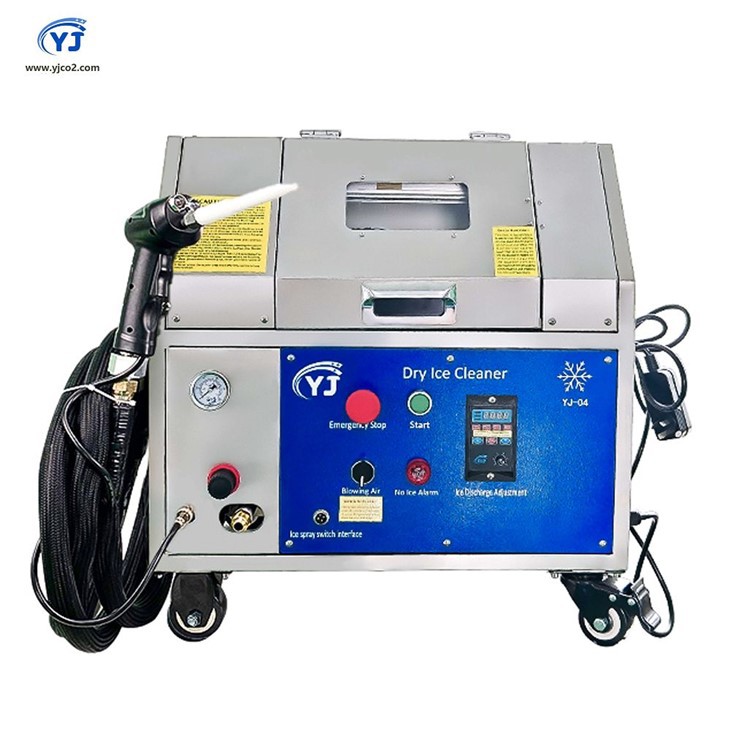

Yuanjie industrial qhuav ice blasting tshuab YJ-04 pab muaj kev tiv thaiv ib puag ncig tu, siv cov dej khov qhuav (cov pa roj carbon dioxide) ua lub ntsiab tu nruab nrab, los ntawm kev ntxuav lub ntsej muag, koj tuaj yeem ua tiav cov nyhuv tu tsis muaj kev puas tsuaj, automated qhuav dej khov. Kev ntxuav yog ua tau, koj tuaj yeem ua tiav PCBA tu, wafer tu, thiab lwm yam kev tu kom huv si.Siv rau kev ntxuav cov roj thiab cov av los ntawm cov neeg hlau thiab cov khoom siv automation. Nws zoo tshem tawm cov khoom seem tom qab soldering, cov coatings coatings, resins, hnyav-raws li txheej txheej, tiv thaiv cov khaubncaws sab nraud povtseg, thiab cov neeg ua haujlwm photoresist los ntawm kev sib koom ua ke ntawm Circuit Court boards thiab luam tawm Circuit Board.
Specifications
|
Khoom qauv |
YJ-04 |
|
Packing loj |
64 * 46 * 71cm |
|
Qhov hnyav tag nrho (GW) |
66kg ua |
|
Khoom loj |
50 * 36 * 56cm |
|
Net nyhav (NG) |
50kg ua |
|
Voltage thiab tam sim no |
AC 110-240V (50-60HZ) / 1.5A (Customizable) |
|
Lub cev muaj zog ntsuas |
300W |
|
Ice tso zis hloov ntau yam |
0-0.65KG/MIN |
|
Ice tso zis siab hloov ntau yam |
{{0}} 25-1.0MPA |
|
Qhuav ice particle adjustment range |
0 05-0.6MM |
|
Siv tau tshuaj tsuag qhov deb |
50-200MM |
|
Ice ntxiv lub voj voog |
30-150MIN/ sijhawm |
|
Ice mixing method |
riam kauv txiav + ice roller nrog dej khov |
Kev ceev faj rau kev siv lub tshuab qhuav dej khov blasting tshuab
Kev siv nyab xeeb
Cov dej khov qhuav muaj qhov kub tsis tshua muaj siab, thiab kev sib cuag ncaj qha tuaj yeem ua rau frostbite. Yuav tsum hnav hnab looj tes thaum tuav cov dej khov qhuav thiab tsis txhob kov nws ncaj qha nrog koj txhais tes.
Xyuas kom muaj qhov cua zoo
Thaum siv lub tshuab ziab khaub ncaws qhuav blasting tshuab nyob rau hauv ib qho chaw kaw, xyuas kom meej tias ib puag ncig zoo-ventilated. Cov pa roj carbon dioxide siab tuaj yeem ua rau ua pa nyuaj lossis lwm yam teeb meem kev noj qab haus huv.
Zam kev kub kub ib puag ncig
Cov dej khov qhuav yuav sublimate sai dua nyob rau hauv qhov chaw kub kub, ua rau kom noj sai dua. Siv lub tshuab nyob rau hauv qhov chaw txias dua thaum twg los tau kom tswj tau qhov ua tau zoo ntawm cov txheej txheem ntxuav dej khov qhuav.
Kev ntxuav tu tsis tu ncua
Tom qab siv lub tshuab ziab khaub ncaws qhuav blasting tshuab, tsis tu ncua ntxuav cov dej khov qhuav thiab lwm qhov chaw sib tiv tauj kom tiv thaiv cov dej khov qhuav los ntawm kev cuam tshuam lub tshuab ua haujlwm. Ua raws li cov lus qhia ntxuav hauv phau ntawv qhia.
Cia qhuav dej khov
Khaws cov dej khov qhuav rau hauv ib lub thawv tshwj xeeb insulated kom qeeb cov txheej txheem sublimation. Tsis txhob cia cov dej khov qhuav rau saum huab cua rau lub sijhawm ntev.
Kev Muag Khoom
Kev pab tswv yim
Ib-rau-ib lo lus teb rau koj cov lus nug txog cov khoom, muab cov ncauj lus kom ntxaws thiab cov lus qhia tshaj lij los pab koj txiav txim siab yuav khoom.
Cov khoom ua qauv qhia
Qhia koj txog kev ua haujlwm thiab qhov zoo ntawm cov khoom los ntawm kev ua haujlwm tiag tiag lossis ua yeeb yaj kiab los pab koj nkag siab zoo dua thiab paub txog cov khoom. Nyob rau tib lub sijhawm, yog tias muaj cov xwm txheej tso cai, koj tuaj yeem muab cov khoom siv los ntxuav kom huv si tiag tiag.
Kev pab cuam tom qab muagNrog rau kev teeb tsa cov khoom, commissioning, tu thiab kho, kom ntseeg tau tias koj tuaj yeem tau txais kev txhawb nqa raws sijhawm thiab zoo tom qab yuav khoom.
Lub sijhawm lav
Peb cov khoom muaj lub sijhawm lav ib xyoos. Thaum lub sijhawm lav, yog tias cov khoom tsis ua haujlwm vim muaj teeb meem zoo, peb yuav muab kev kho dawb lossis hloov kev pabcuam.
Qhov zoo ntawm cov dej khov qhuav blasting
Kev txuag nqi
Txij li cov pa roj carbon dioxide yog ib feem ntawm cov huab cua, nws yooj yim nkag tau thiab pheej yig. Tsuas yog cov khoom siv hluav taws xob uas xav tau yog lub tshuab cua compressor. Thaum lub sij hawm ntxuav, qhuav dej khov sublimates ncaj qha, tshem tawm cov nqi ntawm kev ntxuav cov ntaub ntawv pov tseg.
